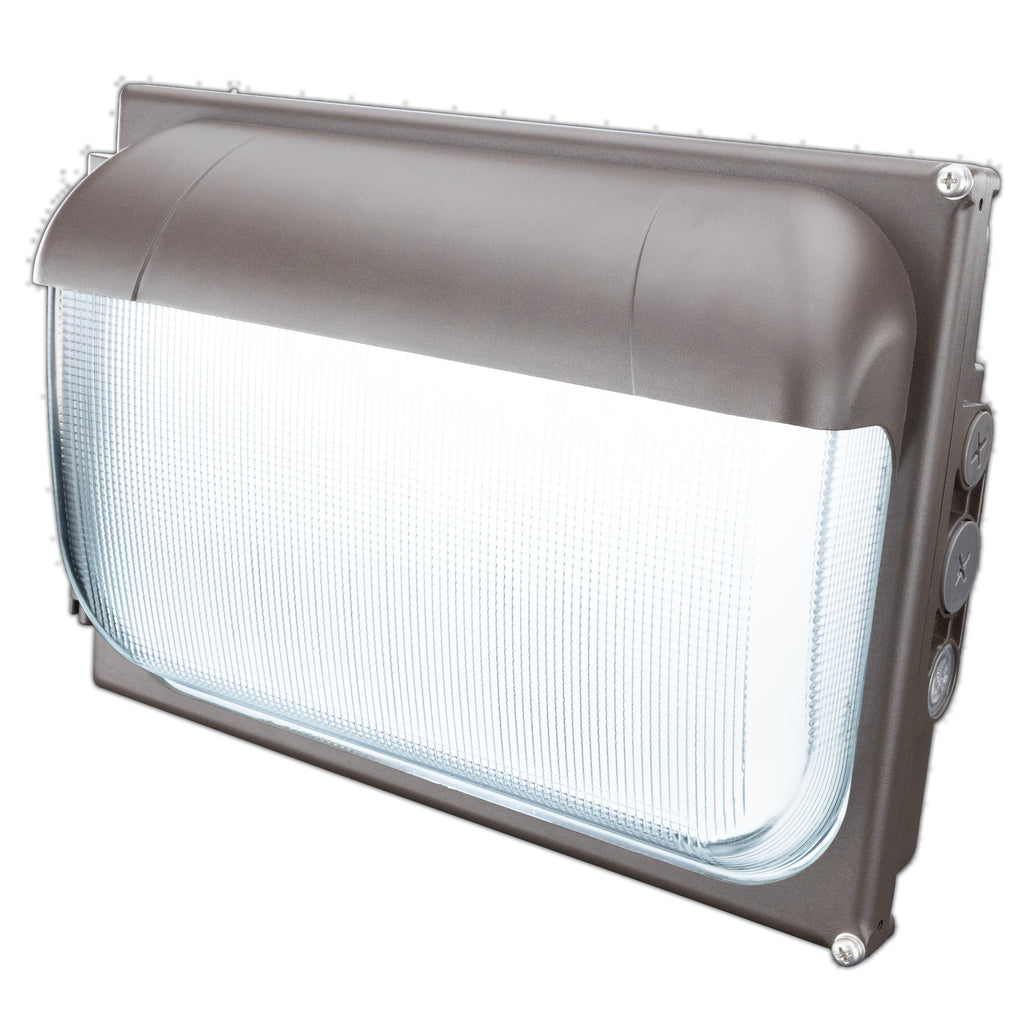

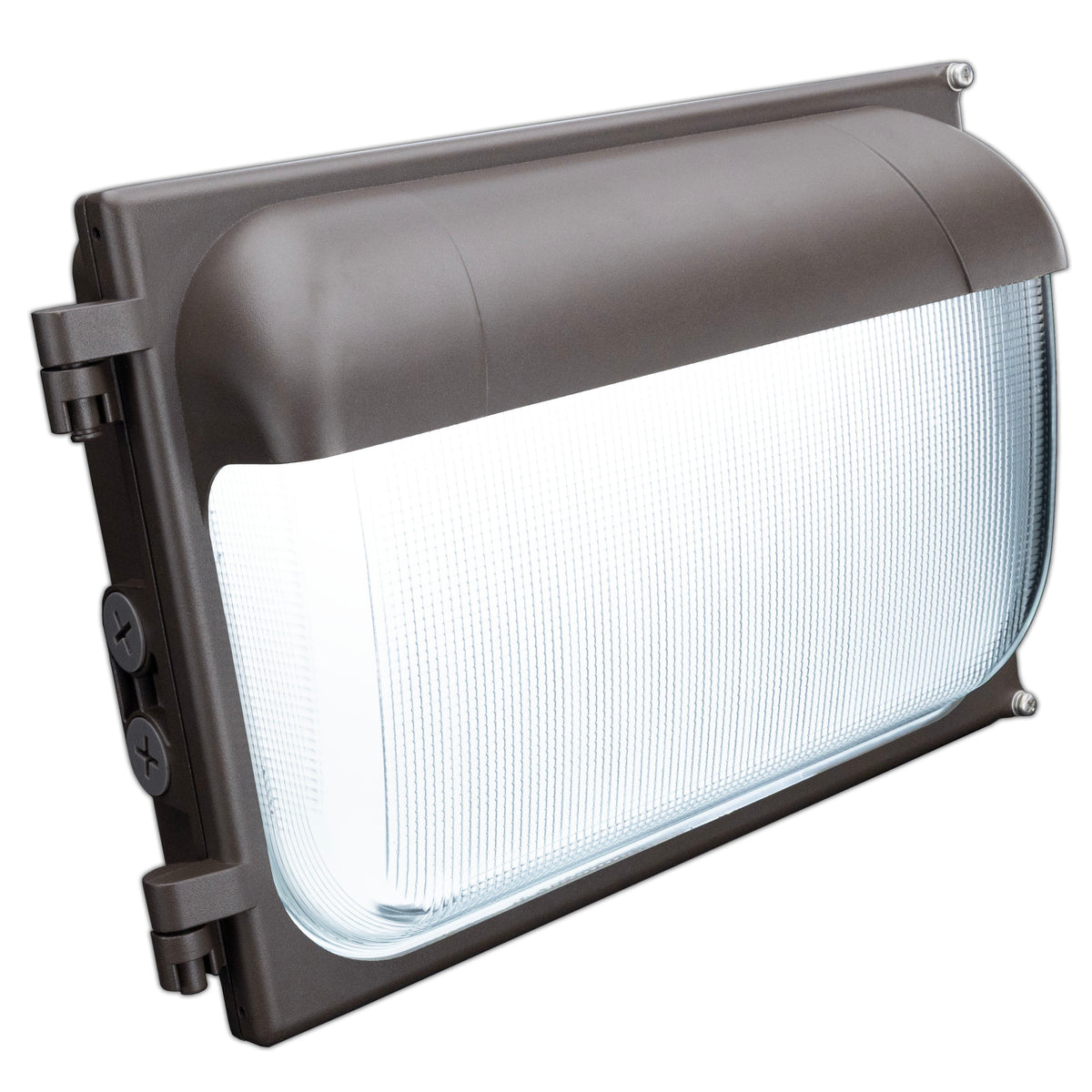

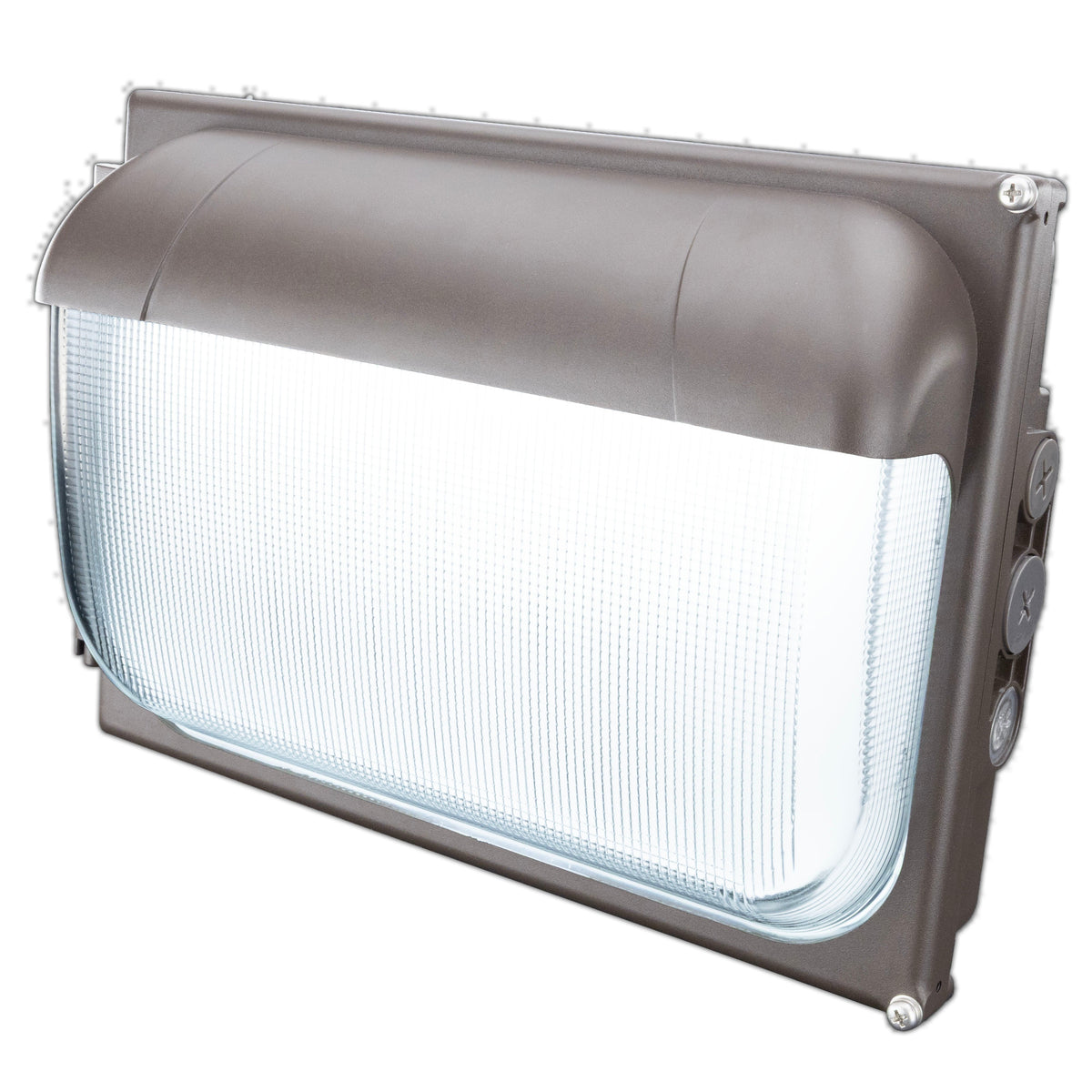

Slim LED Wall Pack, Up to 120W, 14,400 Lumen, Photocell, Dimmable

FREE SHIPPING ON ALL QUANTITIES

Certifications: UL Listed Damp Location

Warranty: 5 years on complete fixture

Specifications

LEDs

• Choose from 80-100-120 Watts
• 9,600-12,000-14,400Lumens
• Color Temp: 3000-4000-5000K
• 50,000 hours of operation
• Minimum Starting Temperature: -22°F

Housing

• One-piece die-cast aluminum housing
• Hinged, removable die-cast aluminum door
• One-piece silicone gasket seals the optical chamber
• Textured bronze finish
• Glass Lens
• Stainless hardware
• Length: 14.25"   Height: 9.25"   Depth: 4.25"

Electrical

• LED driver and electrical components are mounted to the die-cast housing for optimal heat sinking and operating efficiency

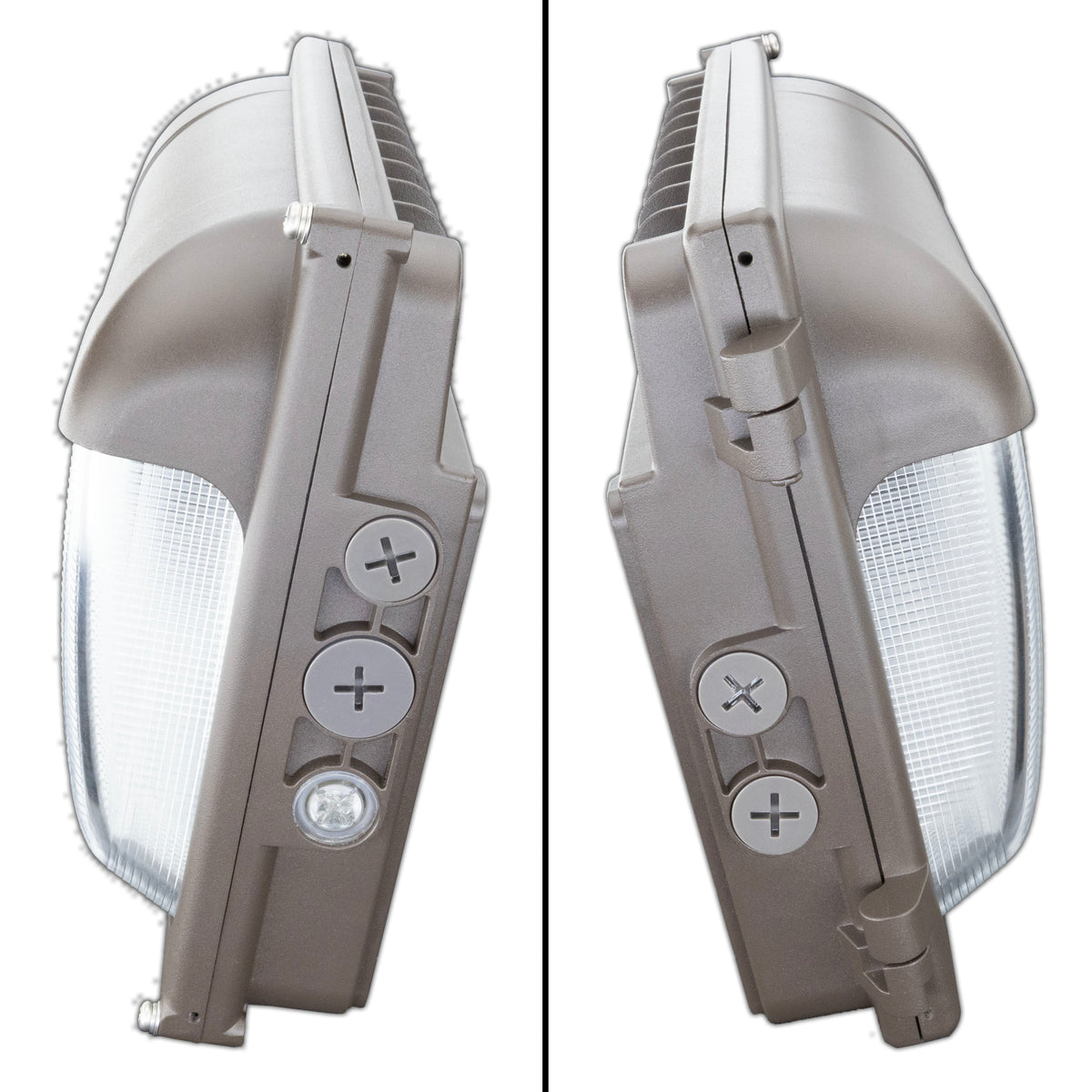

• Four ½” (2 on Left, 1 on Right, 1 on Rear) threaded conduit entry points allow for thru-branch wiring.
• 0-10V Dimmable
• Dusk to Dawn Photocell Included

LED Driver

• UL Recognized integral LED electronic driver is Class 2 rated for 120-277V, 50-60 Hz.

Optical

• Highly reflectance white diffusing anodized aluminum reflector provide high efficiency illumination
• Optical assemblies include impact resistant borosilicate refractive glass

Applications

• Building front side
• Building security
• Parking Facilities
• Entry Ways
• Perimeter/pathway lighting
• Underpasses
